Supercritical Pressure Vessel – EV1L

The EV1L, part of Core Separations’ EV Series, offers a 1 L volume capacity and is purpose-built for high-performance extraction and reaction processes. Designed for research and development, sample preparation, and process optimisation, it combines robust pressure capability with precise thermal control, making it ideal for scaling studies and advanced application development.

Enquire today

Core Separations 1L CO2 extraction vessel used on supercritical fluid extraction machines

Description
Specification PDF 2
Vessel Information
Vessel Connections
Servicing

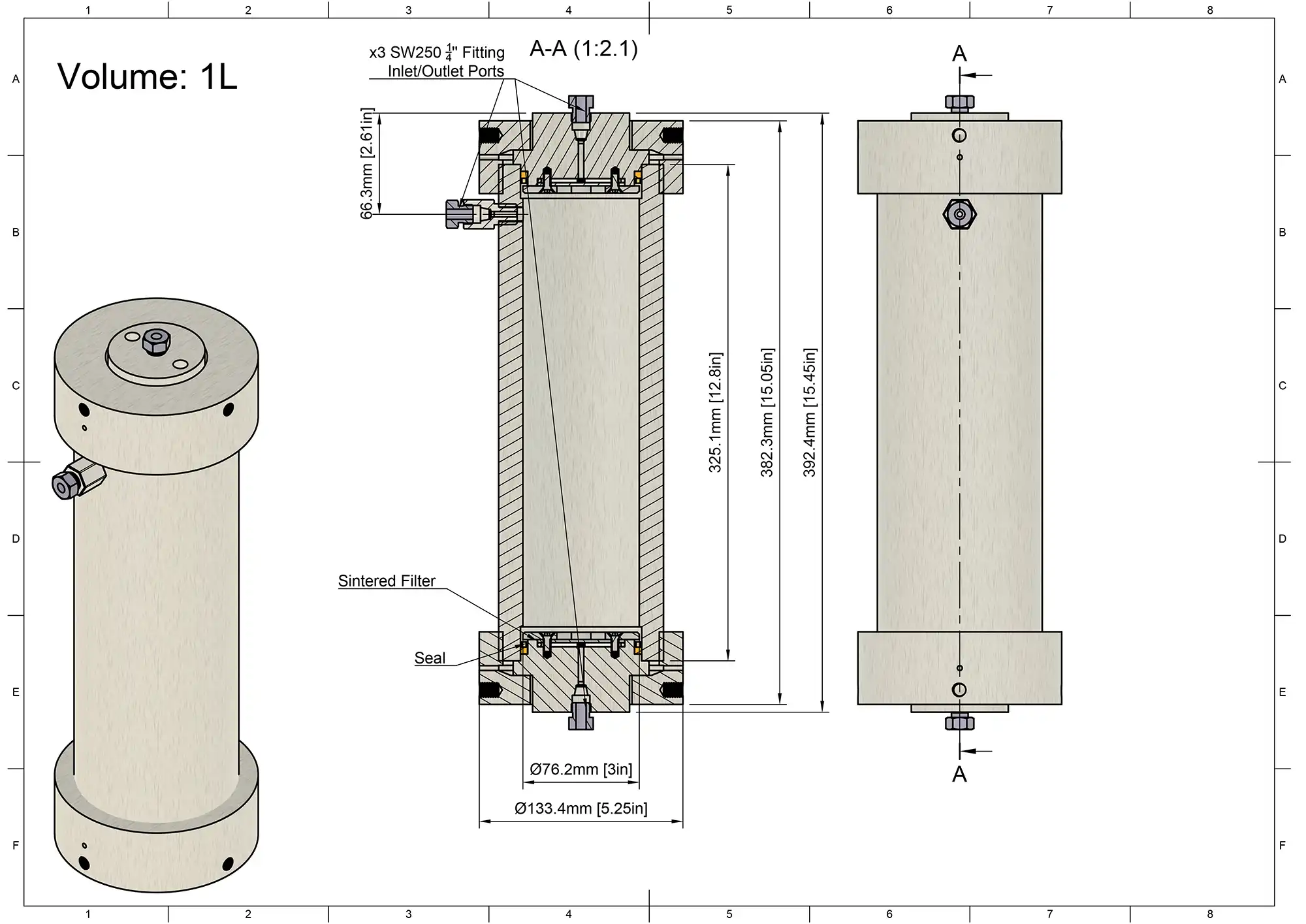

Dimensions

Engineered for ease of use and safety, the EV Series features an innovative threaded cap, energised sprung seal, and a two-headed design. This not only allows tool-free access from both ends for fast cleaning, but also helps prevent premature seal wear during closure, extending service life and maintaining reliable performance.

Constructed from high-strength 17-4PH stainless steel—around 60% stronger than 300 series stainless steels—the vessels achieve reduced weight, thinner walls, and improved heat transfer efficiency.

With scalable internal geometry, the EV Series offers a direct pathway from lab-scale experimentation to pilot-scale process development, ensuring smooth and reliable process scale-up.

Core P251k spec sheet

	EV1L
Fluid	CO2, Liquid
Maximum Pressure	750 bar , 10,877psi
Maximum Temperature	150 °C
Volume	1355 mL
Volume with Basket	N/A
Material of Construction	17-4Ph
Seal type	Sprung Loaded PTFE filled Seal
Dimensions	15.45” (H overall) 11.7” (H internal) 4.25” (OD) x 3” (ID)
Weight
Certifications	ASME, CE, UKCA

Vessel Inlet Connection	SW250 (1/4"
Vessel Outlet Connection	SW250 (1/4")
Side Port	¼" FNPT

Maintainence and Repair of our CO2 Pressure Vessels

Although our CO2 vessels have been designed for 10,000’s of pressure cycles, the repeated removal of the head to charge and discharge the pressure vessels contents acts to wear the seal. A regular schedule of maintanence ensures that the CO2 vessels keep working for longer periods and reducing the downtime to your research and production schedules.
